Portable Single Phase 10KW Silent Diesel RV Generator Set for House , Villa Use
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silent diesel generator,diesel generator for RV |
||
|---|---|---|---|

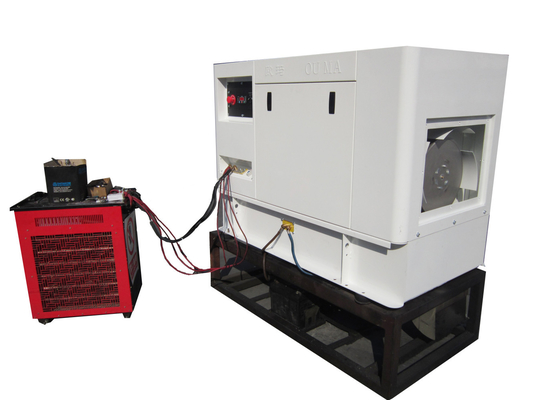

Portable Single Phase 10KW Silent Diesel RV Generator Set for House , Villa Use
Quick Detail:
Single phase ultra silent generator set;
Rated output 10KW/ 50Hz, 12KW/ 60Hz. Power factor 1.0;
Powered by OUMA FAWDE powerful four cylinder 1.8L diesel engine with rated power 17Kw/1500rpm and 20.4Kw/1800rpm;
Description:
Big engine to drive small capacity generator, ensure excellent durabity;
1 year or 1000 hours limited warranty;
60℃ radiator, reliable operation in hot conditions.
70L fuel tank, 13 hours continuous running.
Silent operation with only 62dBA
Radiator motor for central AC is used for the radiator fan,the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours.
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
Applications:
Best choice to power your house, villa or other residential,commerical use.
Specifications:
| Generator set | Model | OM10CYD |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 86.9/43.4 100/50 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1670×750×853 | |
| Overall weight(kg) | ≤580 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 13 | |
| Diesel engine | Model | OM485 |
| Brand | OUMA | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase, three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |

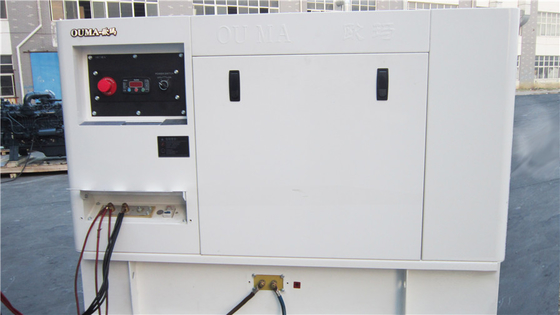

| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- 60℃ radiator for all weather condition .
- Four cavity housing with excellent ventilation and safety.
- Low noise running, little vibration.
- Quick delivery within 20 days.

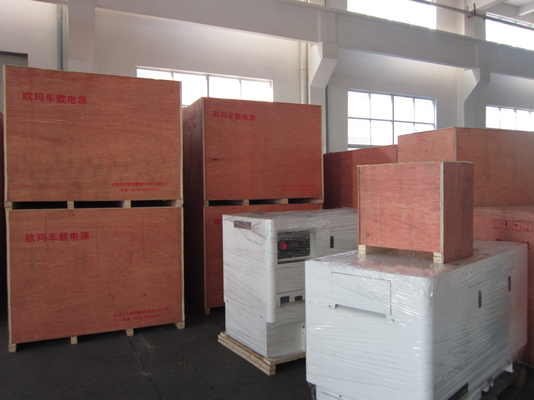

- Double layer package. Plastic film and veneer case.
- Availability of genuine spare parts.
