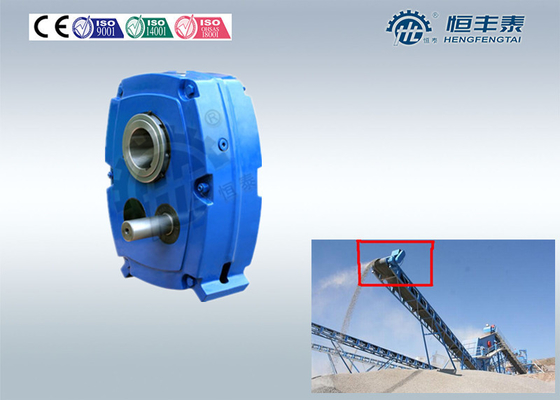

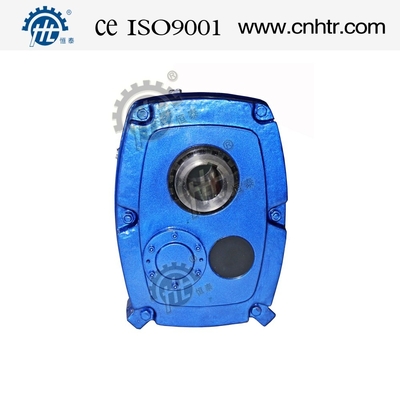

HXGF75-G Shaft Mounted Speed Reducer 85mm Hollow Gear Motor Alloy Steel 8620

Large Image : HXGF75-G Shaft Mounted Speed Reducer 85mm Hollow Gear Motor Alloy Steel 8620 Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HT
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HXGF series

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD180-3500
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	30days
Payment Terms:	T/T or LC
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Apply:

Conveyor Belt

Input Shaft:

Solid Shaft

Output Shaft:

Hollow Output Shaft

Backstop:

Available

High Light:

shaft mount reducer

shaft mounted gear reducer

HXGF75-G Shaft Mounted Speed Reducer 85mm Hollow Gear Motor Alloy Steel 8620

Descriptions:

Helical shaft mounted gear with Taper-Grip bushing

Quick details

Torque:	256 to 44.000 Nm
Ratios:	5:1, 13:1, 20:1, 25:1
Power:	0.18 kW to 280 kW
Sizes:	103 to 608
Bore sizes:	30 to 190 mm, optionally in inches
Mounting:	Vertical, Horizontal, and Direct drive mounting configurations
Lubrication:	Oil lubrication, synthetic lubricant optional
Housing:	Grey cast iron

Features

Higher power through 25° pressure angle and wider gear teeth for maximum torque
Taper-Grip bushing without key for simple fitting and removing
High performance roller bearings for higher loads and longer life
Standard bores Taper-Grip bushings and reducing bushes
Screw conveyor options
Optional Taconite seals
Exchangeable with all types according to AGMA
Flexible motor fitment
Backstops

OUTPUT RPM	B5	C5	D5	E5	F5	G5	H5	J5
50	1.35	2.50	3.85	5.55	8.30	12.10	19.30	31.50
100	2.69	4.60	6.30	11.20	16.50	25.20	39.00	61.00
150	3.60	5.70	8.90	14..00	20.00	35.00	50.40	78.00
200	4.30	6.70	10.50	16.60	24.00	40.00	60.00	93.00
250	4.60	7.70	12.00	18.00	27.50	46.00	68.00	107.0
OUTPUT RPM	B13 B20	C13 C20	D13 D20	E13 E20	F13 F20	G13 G20	H13 H20	J13 J20
10	0.29	0.50	0.80	1.30	1.90	3.30	4.70	7.45
20	0.60	1.10	1.70	2.50	4.10	7.00	10.00	15.80
30	0.80	1.70	2.60	4.20	6.20	10.50	15.00	24.00
40	1.15	2.20	3.50	5.50	8.10	14.00	20.00	31.00
50	1.40	2.50	4.00	6.30	9.40	16.00	23.00	36.00
60	1.70	3.00	4.70	7.40	11.10	19.00	27.00	42.5
70	1.90	3.30	5.20	8.25	12.10	21.00	30.00	46.00
80	2.20	3.90	6.15	9.65	14.20	24.50	35.00	54.00
90	2.40	4.40	6.80	10.70	15.70	27.00	39.00	60.00
100	2.70	4.60	7.20	11.30	16.60	28.50	41.00	63.50
TORQUE AT 10RPM in NM	275	510	810	1270	1865	3230	4650	7100
TORQUE AT 70 RPM in NM	260	420	740	1120	1790	2950	4550	6600

Applications

Ideal for screw conveyors, conveyor belts, processing plant

Luggage conveying

Fibre, paper processing and forestry industry

Mineral working and mining

MixingGrain processing & agriculture

Stationary Crushing Plant

HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher

Specifications:

Dimension(mm)	HXGF Size
Dimension(mm)	HXGF30	HXGF40	HXGF50	HXGF55	HXGF65	HXGF75	HXGF85	HXGF100
Standard size of shaft	30	40	50	55	65	75	85	100
Alternative size of shaft	40	50	55	65	75	85	100	120
Input shaft keyway	6x3.5x50	6x3.5x59	8x4x63	8x4x70	10x5x70	12x5x90	14x5.5x100	16x6x100

SIZES	A	B		C	D	E	F	Input Shaft Keyway	H	J	K	P	T	U	V	W	X	Y
		Hub Dia
		STD	ALT
B	134	30	40	63	59	80	19j6	6x3.5x50	104	131	55	10	186	226	81	75	25	79
C	142	40	50	72	65	90	22j6	6x3.5x5.6	108	156	59	10	218	270	96	90	31	95
D	152	50	55	77	68	100	25j6	8x4x63	118	188	76	12	258	328	117	110	37	116
E	170	55	65	85	76	115	28j6	8x4x70	130	222	90	12	278	377	129	125	43	133
F	189	65	75	90	87	130	32k6	10x5x70	149	242	98	16	317	414	143	141	50	150
G	212	75	85	105	110	145	42k6	12x5x90	172	277	110	16	365	468	162	156	56	166
H	242	85	100	116	115	170	48K6	14x5.5x100	190	330	88	16	434	550	195	189	62	200
