Shaft Mounted Speed Reducer B-30 Smsr Holdback Gearox Tie Rod 750mm Ratio 20/1

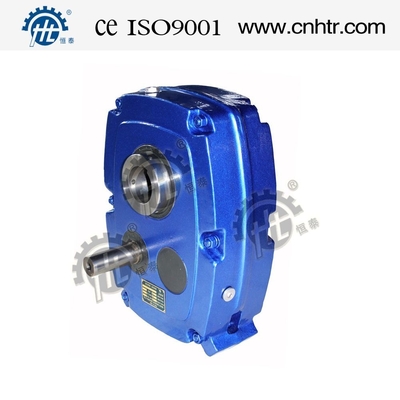

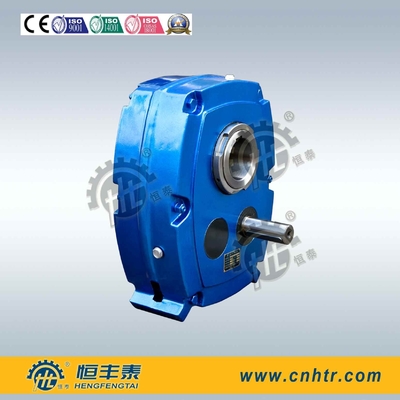

Large Image : Shaft Mounted Speed Reducer B-30 Smsr Holdback Gearox Tie Rod 750mm Ratio 20/1 Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HT
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HXGF series

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD180-3500
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	25days
Payment Terms:	T/T or LC
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Model:

Smsr

Torque Arm:

600-750mm

Export Country:

Jordan

Colar:

Ral5010

High Light:

motor speed reducer

shaft mount reducer

Shaft Mounted Speed Reducer B-30 Smsr Holdback Gearox Tie Rod 750mm Ratio 20/1

Descriptions:

Sizes: The “HXGF” Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
Ratios: These 8 Sizes May Have Nominal Ratios
05:1, 13:1, 20:1.

Quick details

Torque:	256 to 44.000 Nm
Ratios:	5:1, 13:1, 20:1, 25:1
Power:	0.18 kW to 280 kW
Sizes:	103 to 608
Bore sizes:	30 to 190 mm, optionally in inches
Mounting:	Vertical, Horizontal, and Direct drive mounting configurations
Lubrication:	Oil lubrication, synthetic lubricant optional
Housing:	Grey cast iron

Product description

Features:

 Quick & easy installation and adjustment of gearbox. (Elimination of foundations)

Various ranges of output RPM and power requirements with durability.
Low power consumption and provide high range of torque.
Flexible motor mounted in a convenient position.
High efficiency and low maintenance.

Applications

Ideal for screw conveyors, conveyor belts, processing plant

Luggage conveying
Fibre, paper processing and forestry industry
Mineral working and mining
Mixing
Grain processing & agriculture

Specifications:

Dimension(mm)	HXGF Size
Dimension(mm)	HXGF30	HXGF40	HXGF50	HXGF55	HXGF65	HXGF75	HXGF85	HXGF100
Standard size of shaft	30	40	50	55	65	75	85	100
Alternative size of shaft	40	50	55	65	75	85	100	120
Input shaft keyway	6x3.5x50	6x3.5x59	8x4x63	8x4x70	10x5x70	12x5x90	14x5.5x100	16x6x100

Permitted Torque:

Model(single/double)	HXGF30		HXGF40		HXGF50		HXGF55		HXGF65		HXGF75		HXGF85		HXGF100
Nm(100rpm)	256	277	401	468	632	783	983	1194	1444	1881	2407	2970	3457	4380	5940	7449

Model Number	Input shaft Diameter	Output shaft hollow bore diameters:	Output torque range	Torque arm length	Input Speed	Reduction Ratio:
B	19mm	30mm	277Nm	220mm	1400rpm 900rpm 500rpm	5:1 13:1 20:1
C	22mm	40mm	468Nm	240mm
D	25mm	50mm	783Nm	260mm
E	28mm	55mm	1194Nm	280mm
F	32mm	75mm	1881Nm	300mm
G	42mm	85mm	2970Nm	320mm
H	48mm	100mm	4680Nm	380mm
J	55mm	125mm	7449Nm	520mm
