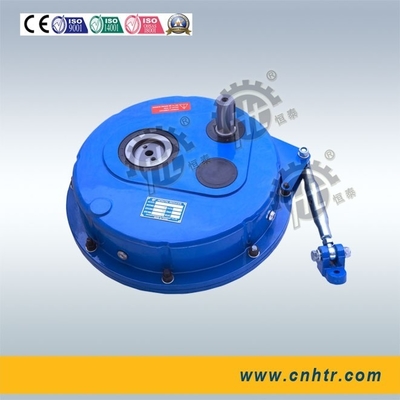

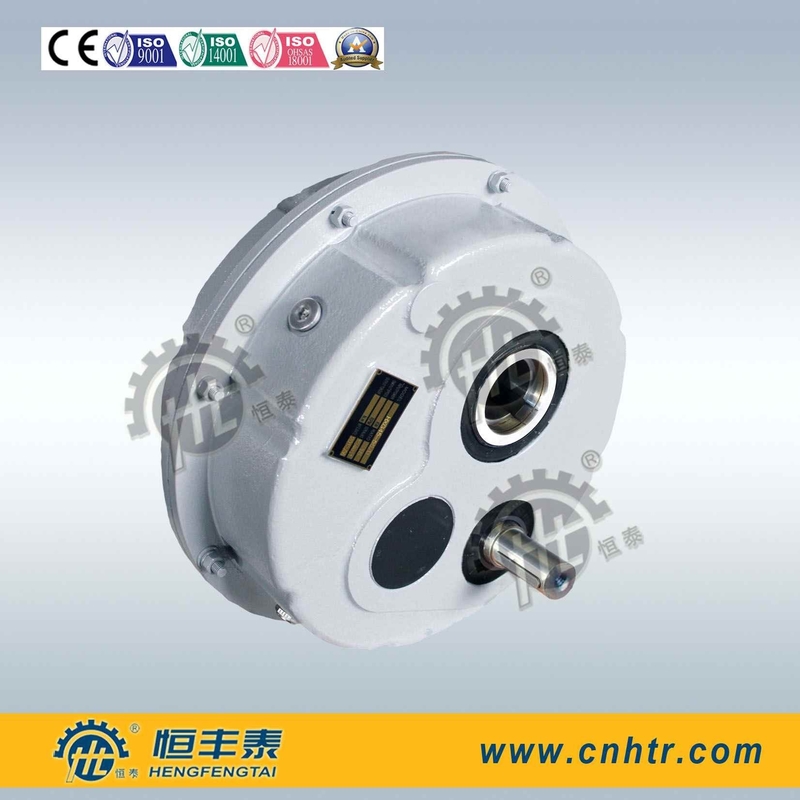

Shaft Mounted Speed Reducer Gearbox Hxg100-125 Crusher Aggregate M20 285Kgs

Large Image : Shaft Mounted Speed Reducer Gearbox Hxg100-125 Crusher Aggregate M20 285Kgs Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HT
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HXG series

Payment & Shipping Terms:

Minimum Order Quantity:	FIVE PIECES
Price:	PLS REFER TO PRICE TABLE
Packaging Details:	Wooden Case, Standard Export Package
Delivery Time:	30days
Payment Terms:	T/T or LC
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Model:

Hxg100-125

Spare:

Torque Arm

Backstop:

With Or Without

Ratio:

25:1

High Light:

motor speed reducer

shaft mounted gear reducer

Shaft Mounted Speed Reducer Gearbox Hxg100-125 Crusher Aggregate M20 285Kgs

Quick Details:

Model Number

HXG30-HXG125

Output shaft diameter

35-135MM

Ratio

5-31

Input Speed

500-1400 RPM

Output Speed

15.1-280RPM

Rated Power

0.92-226 KW

Output Torque

180Nm-17000 N.m

Other Details:

· Gearing Arrangement: Helical

· Place of Origin: Zhejiang, China (Mainland)·

· Brand Name: HENGTAI

· Color: According to customer

· Mounting position: Shaft mounted

· Material for box: cast iron

· Packing: Strong wooden cases for exporting

· Output shaft: Hollow output shaft

· Accessories: Backstop, Torque arm, etc

Model Number	Input shaft Diameter	Output shaft hollow bore diameters:	Output torque range	Torque arm length	Input Speed	Reduction Ratio:
Hxg35-35D	19mm	30mm	1000Nm	220mm	1400rpm 900rpm 500rpm	5:1 7:1 10:1 12.5:1 15:1 20:1 25:1 31:1
Hxg40-40D	24mm	40mm	1350Nm	240mm
Hxg45-45D	28mm	45mm	2050Nm	260mm
Hxg50-50D	42mm	50mm	2100Nm	280mm
Hxg60-60D	48mm	60mm	3500Nm	300mm
Hxg70-70D	48mm	70mm	4900Nm	320mm
Hxf80-80D	55mm	80mm	6600Nm	380mm
Hxg100-100D	55mm	100mm	10500Nm	520mm
Hxg124-125D	60mm	125mm	16000Nm	560mm

Specifications:

Model	HXG30	HXG35	HXG40	HXG45	HXG50
Permitted Torque (Nm)	180	420	950	1400	2300
Model	HXG60	HXG70	HXG80	HXG100	HXG125
Permitted Torque (Nm)	360	5100	7000	11000	17000

Applications

Ideal for screw conveyors, conveyor belts, processing plant

Luggage conveying
Fibre, paper processing and forestry industry
Mineral working and mining
Mixing
Grain processing & agriculture

Ratio	Input Speed (rpm)	Output Speed (rpm)	Model	Rated output torque(Nm)	Rated input power(Kw)	Overhung loads (N)
15/1	1400	93	HXG35-35D	350	3.6	500
			HXG40-40D HXG40-45D	750	7.7	850
			HXG45-45D HXG45-50D HXG45-55D	1200	12.3	1150
			HXG50-50D HXG50-55D HXG50-60D	1900	19.5	1700
			HXG60-60D HXG60-70D	3200	33.0	2600
			HXG70-70D HXG70-85D	4400	45.0	3400
			HXG80-80D HXG80-100D	6100	63.0	4200
			HXG100-100D HXG100-125D	9500	98.0	5000
			HXG125-125D HXG125-135D	12500	128.0	5500
