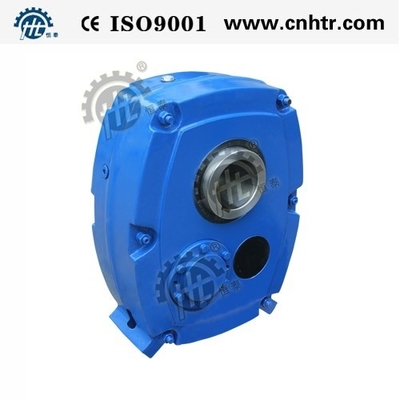

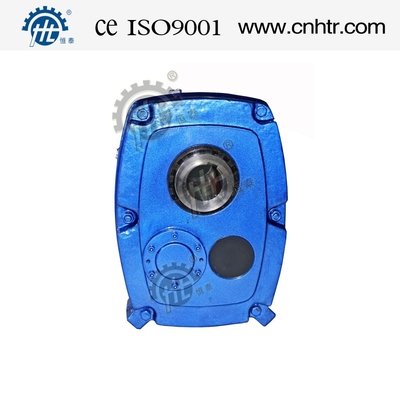

Shaft Mounted Speed Reducer Smsr-D-55 Height 386mm V-Belt Pulley Ratio20/1 Gear

Large Image : Shaft Mounted Speed Reducer Smsr-D-55 Height 386mm V-Belt Pulley Ratio20/1 Gear Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Hengtai
Certification:	TUV,SGS,ISO,CE
Model Number:	HXGF 30-100

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	USD 100-1700
Delivery Time:	25 Days
Payment Terms:	T/T; L/C
Supply Ability:	800 Pieces per Month

Contact Now

Detailed Product Description

Ratio:

Model:

Smsr B,C,D,E,F,G,H,J

Output Shaft:

30-120mm

Input Shaft:

19-55mm

High Light:

motor speed reducer

shaft mounted gear reducer

Shaft Mounted Speed Reducer Smsr-D-55 Height 386mm V-Belt Pulley Ratio20/1 Gear

Quick Details:

Place of Orign

Zhejiang, China

Trade Mark

Hengtai Gearbox

Mounting Position

Shaft Mounted

Color

Ral 5010& 7031& 7040

Certification

CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS

Packing Detials

Wooden Case,

Standard Export Package

Description:

Model Number	Input shaft Diameter	Output shaft hollow bore diameters:	Output torque range	Torque arm length	Input Speed	Reduction Ratio:
B	19mm	30mm	277Nm	220mm	1400rpm 900rpm 500rpm	5:1 13:1 20:1
C	22mm	40mm	468Nm	240mm
D	25mm	50mm	783Nm	260mm
E	28mm	55mm	1194Nm	280mm
F	32mm	75mm	1881Nm	300mm
G	42mm	85mm	2970Nm	320mm
H	48mm	100mm	4680Nm	380mm
J	55mm	125mm	7449Nm	520mm

Dimensions:

SIZES	A	B		C	D	E	F	Input Shaft Keyway	H	J	K	P	T	U	V	W	X	Y
		Hub Dia
		STD	ALT
B	134	30	40	63	59	80	19j6	6x3.5x50	104	131	55	10	186	226	81	75	25	79
C	142	40	50	72	65	90	22j6	6x3.5x5.6	108	156	59	10	218	270	96	90	31	95
D	152	50	55	77	68	100	25j6	8x4x63	118	188	76	12	258	328	117	110	37	116
E	170	55	65	85	76	115	28j6	8x4x70	130	222	90	12	278	377	129	125	43	133
F	189	65	75	90	87	130	32k6	10x5x70	149	242	98	16	317	414	143	141	50	150
G	212	75	85	105	110	145	42k6	12x5x90	172	277	110	16	365	468	162	156	56	166
H	242	85	100	116	115	170	48K6	14x5.5x100	190	330	88	16	434	550	195	189	62	200
