Shaft Mounted Speed Reducer Hxg/Ta 45-50 Gear Hardness Hrc58-62 Loading 1300Nm

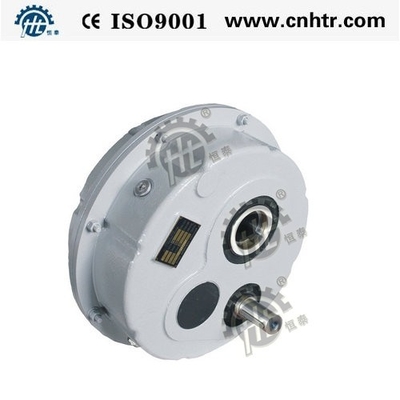

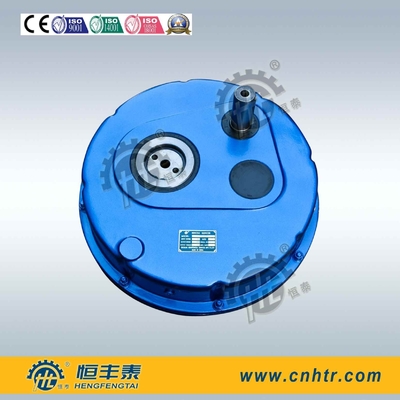

Large Image : Shaft Mounted Speed Reducer Hxg/Ta 45-50 Gear Hardness Hrc58-62 Loading 1300Nm Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Hengtai
Certification:	CE,ISO,SGS,TUV
Model Number:	HXG 30-125

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	USD 100-1700
Delivery Time:	25 Days
Payment Terms:	T/T; L/C
Supply Ability:	800 Pieces per Month

Contact Now

Detailed Product Description

Gear:

Helical

Rated Power:

0.92-226kw

Ratio:

Torque:

180-17000nm

High Light:

motor speed reducer

shaft mount reducer

Shaft Mounted Speed Reducer Hxg/Ta 45-50 Gear Hardness Hrc58-62 Loading 1300Nm

Quick Details:

HXG(TA) Shaft Mounted Speed Reducer
Model	Ratio	Standard bore (mm)	Power(Kw)	Rated torque(N.m)
30	5; 7; 10; 12.5; 15; 20; 25; 31	30	3	180
35		35	5.5	420
40		40; 45	15	950
45		45; 50; 55	22.5	1400
50		50; 55; 60	37	2300
60		60; 65; 70	55	3600
70		70; 85;	78	5100
80		80; 100	110	7000
100		100; 120	160	11000
125		125; 135	200	17000

Description:

Model Number	Input shaft Diameter	Output shaft hollow bore diameters:	Output torque range	Torque arm length	Input Speed	Reduction Ratio:
Hxg35-35D	19mm	30mm	1000Nm	220mm	1400rpm 900rpm 500rpm	5:1 7:1 10:1 12.5:1 15:1 20:1 25:1 31:1
Hxg40-40D	24mm	40mm	1350Nm	240mm
Hxg45-45D	28mm	45mm	2050Nm	260mm
Hxg50-50D	42mm	50mm	2100Nm	280mm
Hxg60-60D	48mm	60mm	3500Nm	300mm
Hxg70-70D	48mm	70mm	4900Nm	320mm
Hxf80-80D	55mm	80mm	6600Nm	380mm
Hxg100-100D	55mm	100mm	10500Nm	520mm
Hxg124-125D	60mm	125mm	16000Nm	560mm

Other Details:

Place of Orign

Zhejiang, China

Trade Mark

Hengtai Gearbox

Mounting Position

Shaft Mounted

Color

Ral 5010& 7031& 7040

Certification

CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS

Packing Detials

Wooden Case,

Standard Export Package

Application:

HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher
