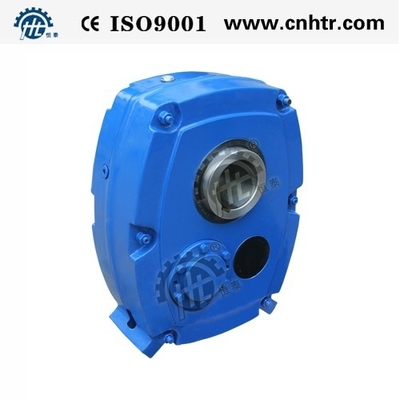

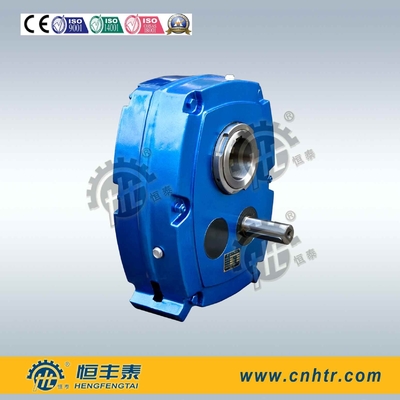

Shaft Mounted Speed Reducer Gearbox Smsr G75 Ratio 13/1 Keyway 12590 Conveyor

Large Image : Shaft Mounted Speed Reducer Gearbox Smsr G75 Ratio 13/1 Keyway 12*5*90 Conveyor Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengtai
Certification:	CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number:	Smsr BCDEFGHJ

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	USD 100-1200
Packaging Details:	Wooden Case, Standard Export Package
Delivery Time:	25-30 Days
Payment Terms:	T/T; L/C
Supply Ability:	1000 Pieces Per Month

Contact Now

Detailed Product Description

Housing:

GG250

Oil Seal:

NAK,KSK

Hollow Bore:

75mm

Gear Material:

8620 Steel

High Light:

shaft mount reducer

shaft mounted gear reducer

Shaft Mounted Speed Reducer Gearbox G75 Ratio 13/1 Keyway 12*5*90 Conveyor

Quick Details:

Trade Mark	Hengtai Gearbox
Gear Arrangement	Shaft Mounted Gearbox
Mounting Position	Shaft Mounted
Output Torque	180-17000 N.M
Rated Power	0.92-226 Kw
Transmission Ratio	5- 31
Output Shaft	Keyed Hollow Output Shaft
Color	Ral 5010& 7031& 7040

Description:

Model Number	Input shaft Diameter	Output shaft hollow bore diameters:	Output torque range	Torque arm length	Input Speed	Reduction Ratio:
B	19mm	30mm	277Nm	220mm	1400rpm 900rpm 500rpm	5:1 13:1 20:1
C	22mm	40mm	468Nm	240mm
D	25mm	50mm	783Nm	260mm
E	28mm	55mm	1194Nm	280mm
F	32mm	75mm	1881Nm	300mm
G	42mm	85mm	2970Nm	320mm
H	48mm	100mm	4680Nm	380mm
J	55mm	125mm	7449Nm	520mm

Dimensions

SIZES	A	B		C	D	E	F	Input Shaft Keyway	H	J	K	P	T	U	V	W	X	Y
		Hub Dia
		STD	ALT
B	134	30	40	63	59	80	19j6	6x3.5x50	104	131	55	10	186	226	81	75	25	79
C	142	40	50	72	65	90	22j6	6x3.5x5.6	108	156	59	10	218	270	96	90	31	95
D	152	50	55	77	68	100	25j6	8x4x63	118	188	76	12	258	328	117	110	37	116
E	170	55	65	85	76	115	28j6	8x4x70	130	222	90	12	278	377	129	125	43	133
F	189	65	75	90	87	130	32k6	10x5x70	149	242	98	16	317	414	143	141	50	150
G	212	75	85	105	110	145	42k6	12x5x90	172	277	110	16	365	468	162	156	56	166
H	242	85	100	116	115	170	48K6	14x5.5x100	190	330	88	16	434	550	195	189	62	200
