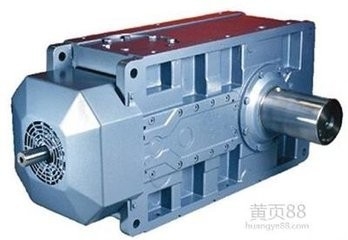

High Performance Bevel Wheel GMC Gearbox / Shaft Mounted Speed Reducer

Large Image : High Performance Bevel Wheel GMC Gearbox / Shaft Mounted Speed Reducer Get Best Price

Product Details:

Place of Origin:	Changzhou China ( Mainland )
Brand Name:	MINGDI
Certification:	CE ROSH ISO9001
Model Number:	GMC

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	USD 60-6000 $ / SET
Packaging Details:	The package size depend on the products.
Delivery Time:	30-40 WORK DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	400000 SETS PER YEAR

Contact Now

Detailed Product Description

Gearing Arrangement:	Bevel Wheel	Input Speed:	700rpm-1500rpm
Model Number:	GMC	Output Torque:	Up To 470000N.m
Output Speed:	1.7~1200rpm	Warranty:	At Least 12 Monthes
Rated Power:	2.2~5366kw	Certification:	CE ROHS ISO9001
High Light:	heavy duty speed reducer , high speed gear reducer

supply Bevel Wheel GMC Gearbox / Output Torque Up to 470000N.m / speed reducer

Product Description

Torque Range: Up to 470000N.m

Output speed: 1.7~1200rpm

Input power: 2.2~5366kw

Mounting solution: foot mounted,shaft mounted,shrink disk mounted.

Input: shaft with key-way,IEC flange;

Output: hollow shaft with key-way,hollow shaft with shrink disk;

Shaft arrangment: A,B,C,D (detailed please see catalogue)

characteristics:

1. Housing material: HT250 high-strength cast iron ;

2. Housing hardness: HBS190-240;

3. Gear material: 20CrMnTi alloy steel,other materials requested:17CrNi2Mo,20CrNi4A

4. Surface hardness of gears: HRC58-62;

5. Gear core hardness: HRC33-40;

6. Input / Output shaft material: 42CrMo alloy steel;

7. Input / Output shaft hardness: HRC25-30;

8. Heat treatment:tempering,cementiting,quenching.etc.;

9. Machining precision of gears:accurate grinding, 6-5 Grade;

10. Noise (MAX): 60~68dB;

11. Lubricating oil: GB L-CKC220-460, Shell Omala220-460;

12.Temp. rise (MAX): 40°C ;

13..Efficiency: 94%~96% (depends on the transmission stage) ;

14.Temp. rise (Oil)(MAX):50°C;

15. Backlash: ≤20Arcmin;

16. Vibration: ≤20µm;

Model details:

Series	Transmission Ratio (i)	Models
H1	1.25-5.6	H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19
H2	6.3-28	H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
H3	25-112	H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
H4	100-450	H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26
