Shaft Mounted Speed Reducers Circular Gear Cylindrical Reducer SCWU63 SCWU80

Shaft Mounted Speed Reducers Circular Gear Cylindrical Reducer SCWU63 SCWU80

product description:

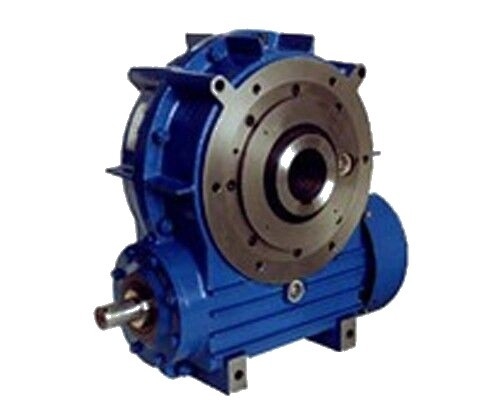

 SCW circular cylindrical worm reducer
SCW shaft mounted circular cylindrical worm reducer (JB/T737-1994), using enveloping toroid worm gear forming (ZC1) cylindrical worm, worm gear and worm conjugate of tooth profile, it is suitable for metallurgy, lifting, transportation, construction, chemical, mining, textile and other mechanical transmission of retarding mechanism, can be widely used in the national economy departments. This series reducer power range between 0.59 ~ 75.84 KW, output torque in 180 ~ 7077 n. m, between the input shaft revolution is generally not more than 1500 r/min, the high-speed shaft can be positive and negative two to operate, the work environment temperature for - between -40 ~ + 40 degrees, when working environment temperature is below zero, before the start of lubricating oil must be heated to above zero.


1. The model

SCWU - worm under worm gear shaft mounted circular cylindrical worm reducer
SCWS - worm in the side of worm gear shaft mounted circular cylindrical worm reducer
SCWO - worm on worm gear shaft mounted circular cylindrical worm reducer
2. The center distance
63,80,100,125,140,160,180,200,225,250,280,315
3. The transmission ratio I is 5 ~ 63

Model :

SCWU63,SCWU80,SCWU100,SCWU125,SCWU140,SCWU160,SCWU180,SCWU200,SCWU225,

SCWU250,SCWU280,SCWU315,SCWS63,SCWS80,SCWS100,SCWS125,SCWS140,SCWS160,

SCWS180,SCWS200,SCWS225,SCWS250,SCWS280,SCWS315,SCWO63,SCWO80,SCWO100,

SCWO125,SCWO140,SCWO160,SCWO180,SCWO200,SCWO225,SCWO250,SCWO280,SCWO315

Delivery

1. If order sample for test,we can send it to you by UPS/ TNT / DHL / FEDEX.The tracking number will be advised after delivery.

2. If the order is big,we will advise you delivery it by air or by sea.

3. EXW,FOB,CIF are available.It's up to you.
