15mm Deep Groove Self-Aligning Ball Bearing 1202 ETN9 High Speed P6 Grc15

large.img.alt
small.img.alt

Large Image :  15mm Deep Groove Self-Aligning Ball Bearing 1202 ETN9 High Speed P6 Grc15 Get Best Price

Product Details:
Place of Origin: china
Brand Name: miru
Certification: ISO9001
Model Number: Self-aligning Ball Bearing
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Individual box/ single box / according to your requirement
Delivery Time: 45 DAYS
Payment Terms: T/T
Supply Ability: 5000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Structure: Deep Groove Type: Ball
Number Row: Double Row Seals Type: OPEN
Precision Rating: P0 P6 P5 P4 P2 Brand: Miru, OEM And So On
High Light:

self aligning bearings

,

stainless steel ball bearings

Deep Groove Self-Aligning Ball Bearing 1202 ETN9 High Speed  P6 Grc15



Deep Groove Self-Aligning Ball Bearing 1202 ETN9 High Speed



Product Description

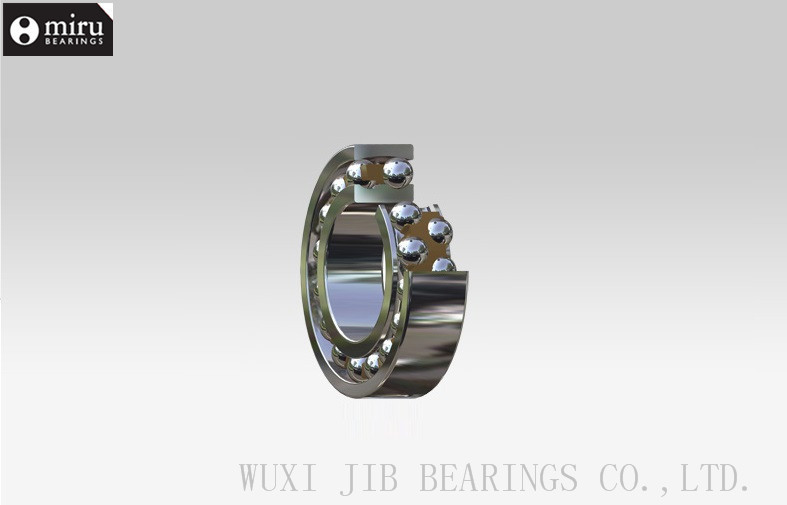

Self-aligning ball bearing(1202 ETN9)  has two rows of balls and a common sphered raceway in the outer ring.  The bearings are consequently self-aligning and insensitive to shaft deflections and angular mis-alignment of the shaft related to the housing. Moreover, self-aligning ball bearing generates less friction than any other type of rolling bearings, which enables them to run cooler even in high operation speed.
Self-aligning ball bearings are available with either a cylindrical or taper bore. Bearings with a taper bore can be mounted directly on a shaft or on an adapter or withdrawal sleeve.



Product Features



  • Self-aligning bearing for applications subject to shaft deflections or misalignments between the shaft and housing
  • Straight bore for fitting on a conventional cylindrical shaft
  • Open configuration for lubrication applied in place
  • Steel cage evenly spaces balls for reduced friction, vibration, and noise
  • Normal radial internal clearance for applications where thermal expansion is not a factor



1202 ETN9 Self-aligning Ball Bearing 15x35x11mm

Stock QTY: 1300pcs    (More on the way)

Size: 15x35x11mm  Weight: 0.049KG

d: 15mm

D: 35mm

B: 11mm

Weight: 0.049KG

Dynamic Load:7.41kN

Static Load:1.46kN





1207 K

Related models:



Principal dimensions
Basic load ratings Speed ratings Mass Designation
dynamic static Reference speed Limiting speed
d/mm D/mm B/mm C/kN C0/KN r/min r/min kg
5 19 6 2,51 0,48 63000 45000 0,009 135 TN9
6 19 6 2,51 0,48 70000 45000 0,009 126 TN9
7 22 7 2,65 0,56 63000 40000 0,014 127 TN9
8 22 7 2,65 0,56 60000 40000 0,014 108 TN9
9 26 8 3,9 0,82 60000 38000 0,022 129 TN9
10 30 9 5,53 1,18 56000 36000 0,034 1200 ETN9
10 30 14 8,06 1,73 50000 34000 0,047 2200 ETN9
10 30 14 5,53 1,18 50000 17000 0,048 2200 E-2RS1TN9
12 32 10 6,24 1,43 50000 32000 0,04 1201 ETN9
12 32 14 8,52 1,9 45000 30000 0,053 2201 ETN9
12 32 14 6,24 1,43 45000 16000 0,053 2201 E-2RS1TN9
12 37 12 9,36 2,16 40000 28000 0,067 1301 ETN9
12 37 17 11,7 2,7 38000 28000 0,095 2301
15 35 11 7,41 1,76 45000 28000 0,049 1202 ETN9
15 42 13 10,8 2,6 34000 24000 0,094 1302 ETN9
15 42 17 11,9 2,9 32000 24000 0,12 2302
15 42 17 10,8 2,6 32000 12000 0,11 2302 E-2RS1TN9
17 40 12 8,84 2,2 38000 24000 0,073 1203 ETN9
17 40 16 10,6 2,55 34000 24000 0,088 2203 ETN9
17 40 16 8,84 2,2 - 12000 0,089 2203 E-2RS1TN9
17 47 14 12,7 3,4 28000 20000 0,13 1303 EM
17 47 14 12,7 3,4 28000 20000 0,12 1303 ETN9
17 47 19 14,6 3,55 30000 22000 0,18 2303 M
17 47 19 12,7 3,4 - 11000 0,16 2303 E-2RS1TN9
17 47 19 14,6 3,55 30000 22000 0,16 2303
20 47 14 12,7 3,4 32000 20000 0,12 1204 ETN9
20 47 14 12,7 3,4 32000 20000 0,12 1204 EKTN9


Double row self-aligning ball bearings have a sphere raceway in the outer ring and a double raceway in the inner ring. This feature give the bearings their self-aligning property, permitting angular misalignment of the shaft relative to the housing. They are therefore particularly suitable for applications where misalignment can arise from errors in mounting or from shaft deflection.

Double row self-aligning ball bearings are mainly used to carry radial loads and light axial loads, but cann't carry pure axial loads
