HXGF/SMR/SMSR shaft mounted gear speed reducer/gear unit
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | shaft mounted reducer,smsr gear reducer,shaft mounted speed reducer |
||
|---|---|---|---|
About HFT:
Company name: Zhejiang Hengfengtai Reducer MFG.CO.,Ltd
Founding year: 1991
Quantity of employees:500 employees
Factory square: 50000square meters
Main products:With gear reducer and gearbox products as leading, extend to Electrolytic aluminumequipments,Mixing equipments,Precision transmission equipments,Environmental protection equipments and so on large machinery equipments.
Qualifications of quatity:CE,ISO9001,ISO14001,TUV,SGS, etc.
About HXGF:
HXGF Shaft Mounted Gear Reducer is our company new design product.
For offering better choice according to our markettendency.
The better material are choosed by us for better use of our customers.
Model Selection:
Ratio:5:1
| Model | HXGF30 | HXGF40 | HXGF50 | HXGF55 | HXGF65 | HXGF75 | HXGF85 | HXGF100 |
| Output(RPM) | 100-400 | 100-400 | 100-400 | 100-400 | 100-400 | 100-400 | 100-400 | 100-400 |
| Power Rating(KW) | 2.68-7.14 | 4.2-9.66 | 6.62-15.65 | 10.29-24.57 | 15.12-35.91 | 25.2-59.9 | 36.2-81.9 | 62.2-134.2 |
| Permissible torque(Nm) | 256 | 401 | 632 | 983 | 1444 | 2407 | 3457 | 5940 |
Ratio:13:1 and 20:1
| Model | HXGF30 | HXGF40 | HXGF50 | HXGF55 | HXGF65 | HXGF75 | HXGF85 | HXGF100 |
| Output(RPM) | 10-115 | 10-115 | 10-115 | 10-115 | 10-115 | 10-115 | 10-115 | 10-115 |
| Power Rating(KW) | 0.29-3.11 | 0.49-4.62 | 0.82-7.81 | 1.25-11.55 | 1.97-17.01 | 3.11-27.09 | 4.9-40.7 | 7.8-60.5 |
| Permissible torque(Nm) | 277 | 468 | 783 | 1194 | 1881 | 2970 | 4680 | 7449 |
Why Choose us:
1) All torque arms/fulcrums are plated to eliminate them being rusted in use.
2) The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from contamination.
3) The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.
4) Input shaft front bearing is a roller bearing as it takes in more radial load from the belt pressure.
5) Breather plugs are extended so that the dust does not clog the breather hole.
6) All oil seals imported from Taiwan.
7) Our gear units now have higher load capacity as the gears have been redesigned.
8) All gears are case carburised to a casedepth and ground inhouse.
9) All gear units are machined on a CNC machining center so are very accurate in alignment.
10) Finish of all gear units are far superior to any other brand being sold out of India.
11) The shaft mounts are available with keyed hollow shafts or hollow taper bores with taper clamps.

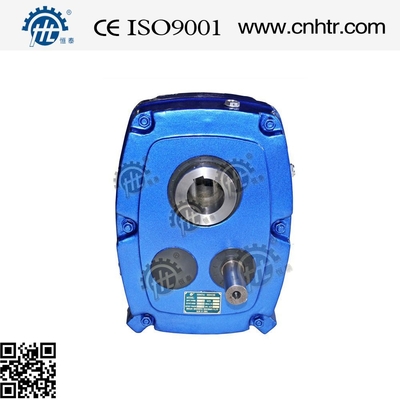

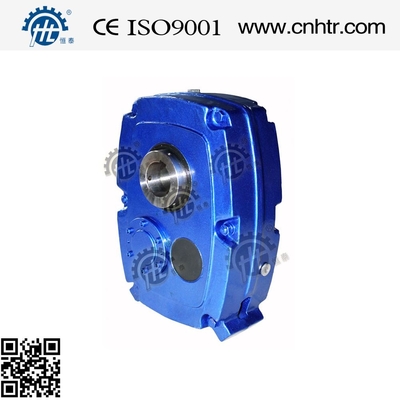

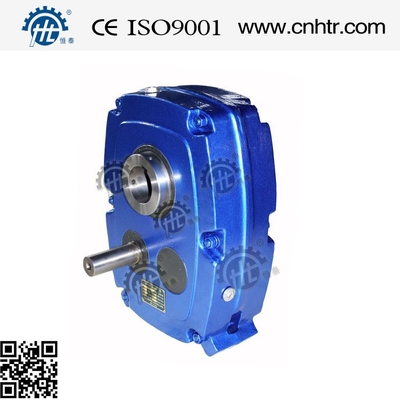

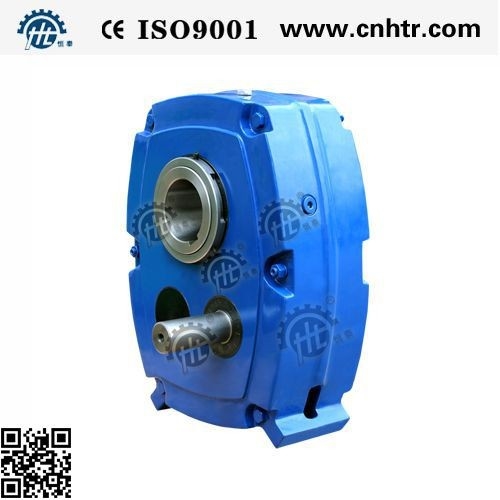

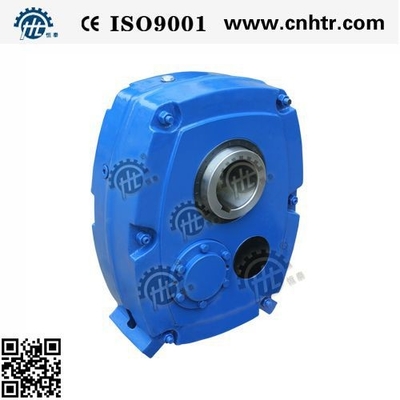

Pictures:
